# CS261 Lecture 15: the LP of Max Flow

In which we look at the linear programming formulation of the maximum flow problem, construct its dual, and find a randomized-rounding proof of the max flow – min cut theorem.

In the first part of the course, we designed approximation algorithms “by hand,” following our combinatorial intuition about the problems. Then we looked at linear programming relaxations of the problems we worked on, and we saw that approximation algorithms for those problems could also be derived by rounding a linear programming solution. We also saw that our algorithms could be interpreted as constructing, at the same time, an integral primal solution and a feasible solution for the dual problem.

Now that we have developed exact combinatorial algorithms for a few problems (maximum flow, minimum s-t cut, global min cut, maximum matching and minimum vertex cover in bipartite graphs), we are going to look at linear programming relaxations of those problems, and use them to gain a deeper understanding of the problems and of our algorithms.

We start with the maximum flow and the minimum cut problems.

# CS261 Lecture 12: the Push-Relabel Algorithm

In which we prove that the basic implementation of the push-relabel algorithm runs in time ${O(|V|^2\cdot |E|)}$.

# CS261 Lecture 11: Strongly Polynomial Time Algorithms

In which we prove that the Edmonds-Karp algorithm for maximum flow is a strongly polynomial time algorithm, and we begin to talk about the push-relabel approach.

# CS 261 Lecture 10: the fattest path

In which we discuss the worst-case running of the Ford-Fulkerson algorithm, discuss plausible heuristics to choose an augmenting path in a good way, and begin analyzing the “fattest path” heuristic.

In the last lecture we proved the Max-Flow Min-Cut theorem in a way that also established the optimality of the Ford-Fulkerson algorithm: if we iteratively find an augmenting path in the residual network and push more flow along that path, as allowed by the capacity constraints, we will eventually find a flow for which no augmenting path exists, and we proved that such a flow must be optimal.

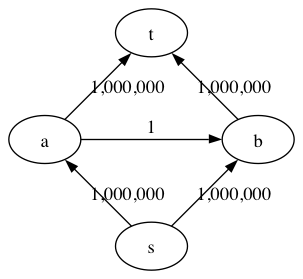

Each iteration of the algorithm takes linear time in the size of the network: the augmenting path can be found via a DFS of the residual network, for example. The problem is that, in certain cases, the algorithm might take a very long time to finish. Consider, for example, the following network. Suppose that, at the first step, we pick the augmenting path ${s\rightarrow a\rightarrow b \rightarrow t}$. We can only push one unit of flow along that path. After this first step, our residual network (not showing edges out of ${t}$ and into ${s}$, which are never used in an augmenting path) is Now it is possible that the algorithm picks the augmenting path ${s\rightarrow b\rightarrow a\rightarrow t}$ along which, again, only one unit of flow can be routed. We see that, indeed, it is possible for the algorithm to keep picking augmenting paths that involve a link between ${a}$ and ${b}$, so that only one extra unit of flow is routed at each step.

The problem of very slow convergence times as in the above example can be avoided if, at each iteration, we choose more carefully which augmenting path to use. One reasonable heuristic is that it makes sense to pick the augmenting path along which the most flow can be routed in one step. If we had used such an heuristic in the above example, we would have found the optimum in two steps. Another, alternative, heuristic is to pick the shortest augmenting path, that is, the augmenting path that uses the fewest edges; this is reasonable because in this way we are going to use the capacity of fewer edges and keep more residual capacity for later iterations. The use of this heuristic would have also resulted in a two-iterations running time in the above example.

# CS261 Lecture 9: Maximum Flow

In which we introduce the maximum flow problem.

1. Flows in Networks

Today we start talking about the Maximum Flow problem. As a motivating example, suppose that we have a communication network, in which certain pairs of nodes are linked by connections; each connection has a limit to the rate at which data can be sent. Given two nodes on the network, what is the maximum rate at which one can send data to the other, assuming no other pair of nodes are attempting to communicate?

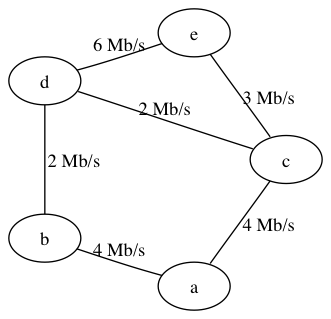

For example, consider the following network, and suppose that ${a}$ needs to send data at a rate of ${6Mb/s}$ to ${e}$. Is this possible?
